EN-RO1

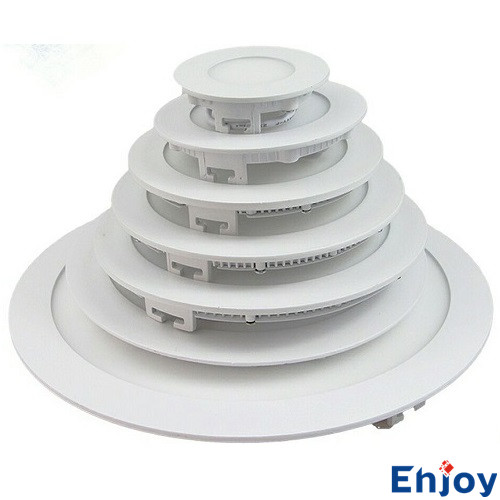

  • EN-RO1-2
  • EN-RO1-1

FEATURES:

  1. Die-casting Aluminium
  2. Super bright SMD LED chips
  3. High quality light guide plate with high light transmission rate
  4. Intelligent constant current IC driver
WATTAGE VOLTAGE/
FREQUENCY		 MATERIAL CRI CCT LED TYPE LUMENS DIMENSION(mm) CUT OUT(mm)
3W AC85-265V∽50/60HZ Aluminium Ra80 3000K/4000K/6000K SMD2835*15pcs 240lm Ф85*H20 Ф70
4W AC85-265V∽50/60HZ Aluminium Ra80 3000K/4000K/6000K SMD2835*20pcs 320lm Ф105*H20 Ф90
6W AC85-265V∽50/60HZ Aluminium Ra80 3000K/4000K/6000K SMD2835*30pcs 480lm Ф120*H20 Ф105
9W AC85-265V∽50/60HZ Aluminium Ra80 3000K/4000K/6000K SMD2835*45pcs 720lm Ф145*H20 Ф130
12W AC85-265V∽50/60HZ Aluminium Ra80 3000K/4000K/6000K SMD2835*60pcs 960lm Ф170*H20 Ф155
15W AC85-265V∽50/60HZ Aluminium Ra80 3000K/4000K/6000K SMD2835*75pcs 1200lm Ф200*H20 Ф180
18W AC85-265V∽50/60HZ Aluminium Ra80 3000K/4000K/6000K SMD2835*90pcs 1440lm Ф225*H20 Ф210
24W AC85-265V∽50/60HZ Aluminium Ra80 3000K/4000K/6000K SMD2835*120pcs 1920lm Ф300*H20 Ф280
